Draw the decision table produced by boin_decision_table as a
grid of colored cells, one per pair of DLT and patient counts, with the
decision letter in each cell.
Usage
# S3 method for class 'boin_decision_table'
plot(x, text_size = 1, colors = NULL, ...)Arguments
- x
An object of class
boin_decision_table.- text_size
Numeric scalar. Multiplier applied to every text size in the figure. Use a larger value when the figure is exported at high resolution, for example into a report. Defaults to 1.
- colors
Named character vector of four colors, with names
"E","S","D"and"DE". Defaults to a palette whose adjacent categories remain distinguishable under the common forms of color vision deficiency.- ...
Further arguments, currently ignored.
Value
A ggplot2 object, which can be printed, saved with
ggplot2::ggsave() or extended with further layers.
Details
Every cell carries its decision letter, so the figure does not rely on color alone to convey the decision and remains readable in grayscale.
Requires the ggplot2 package, which is only suggested by simFastBOIN rather than required.
Examples

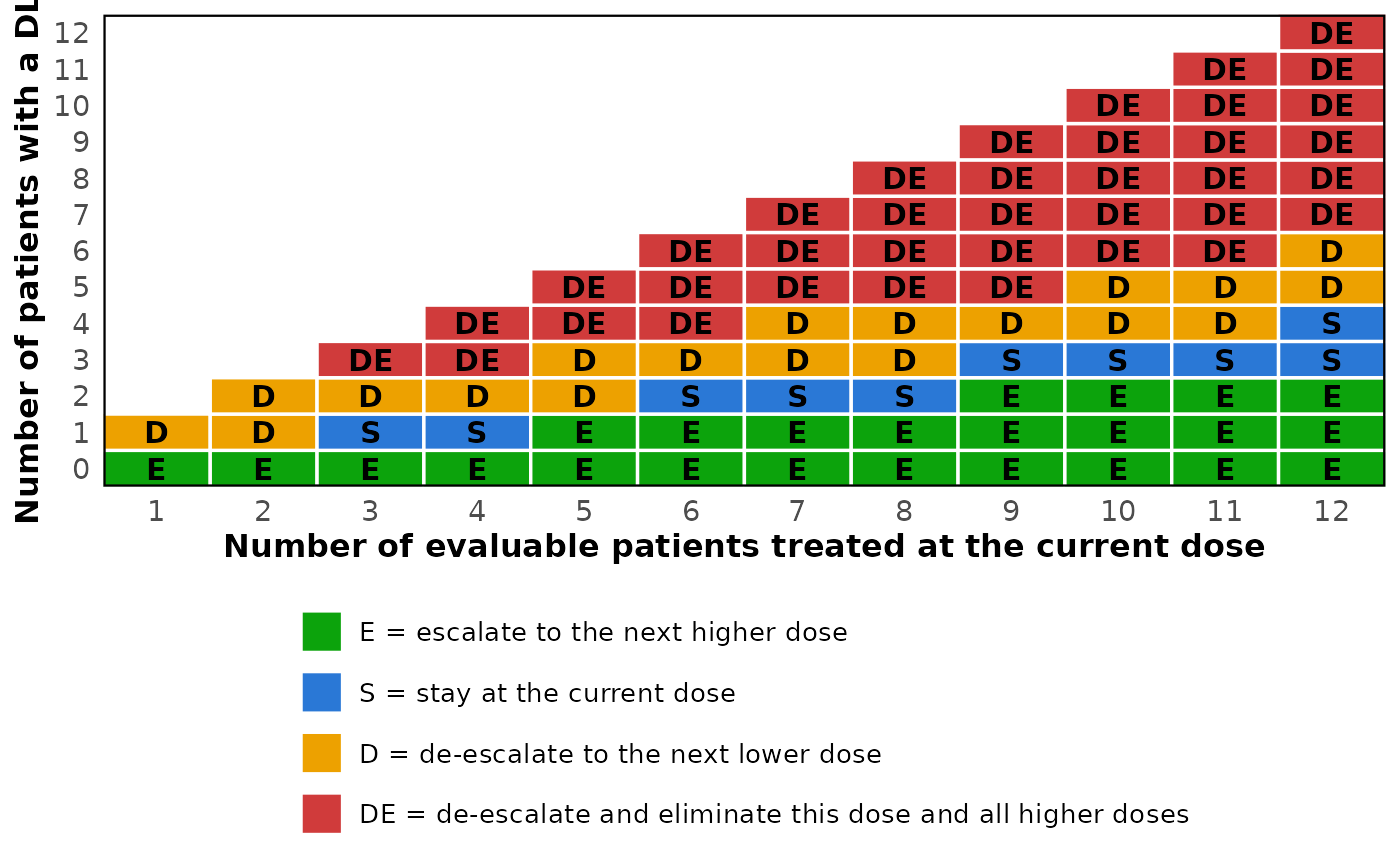

decisions <- boin_decision_table(target = 0.30, max_n = 12)
plot(decisions)
# Larger text for a high resolution export
plot(decisions, text_size = 2)

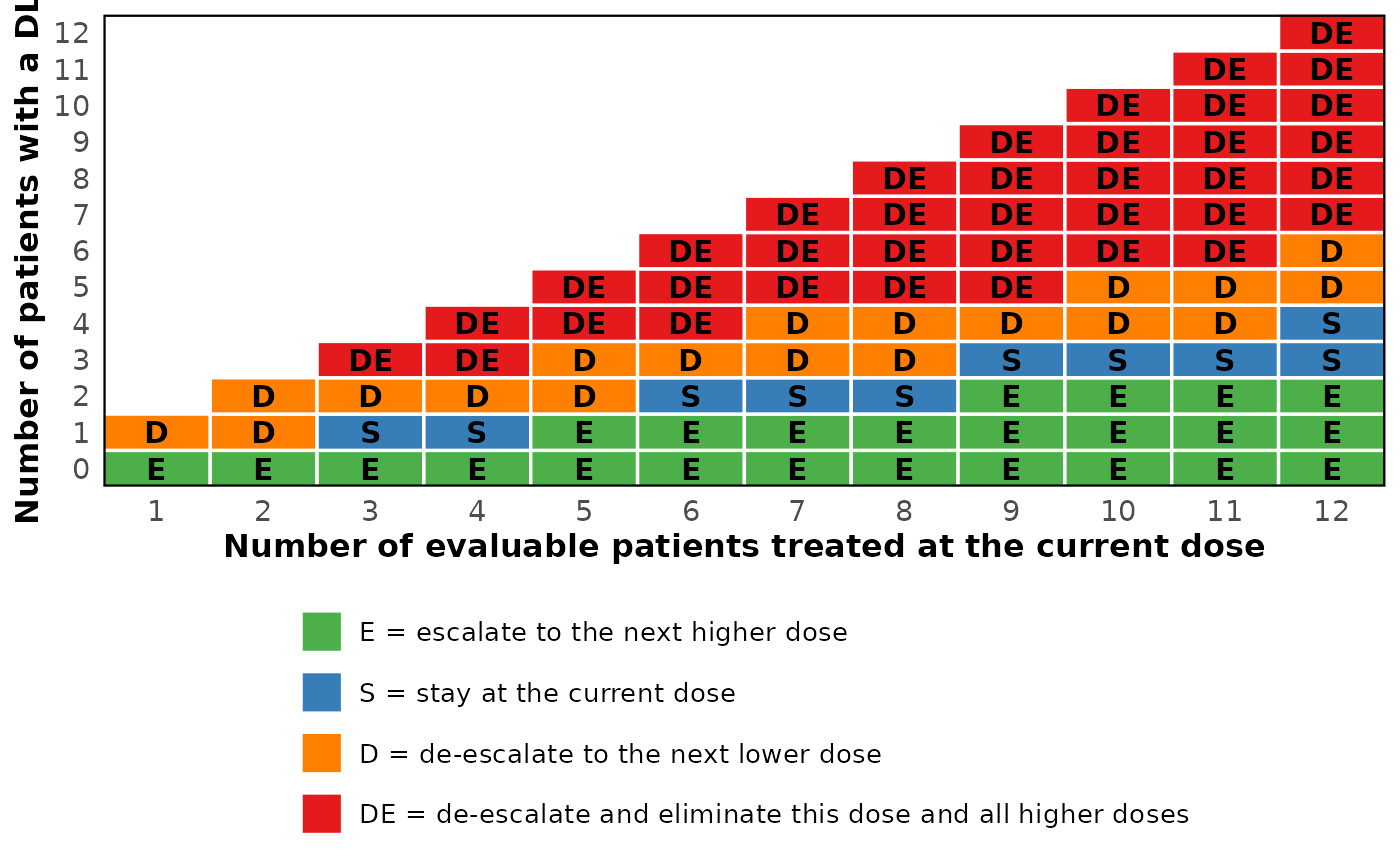

# A palette of your own
plot(decisions, colors = c(E = "#4DAF4A", S = "#377EB8",
D = "#FF7F00", DE = "#E41A1C"))
