Plot Regional Consistency Probability for Single-Arm MRCT (Milestone Survival Endpoint)

Source: R/plot_rcp1armMilestoneSurvival.R
plot_rcp1armMilestoneSurvival.Rd

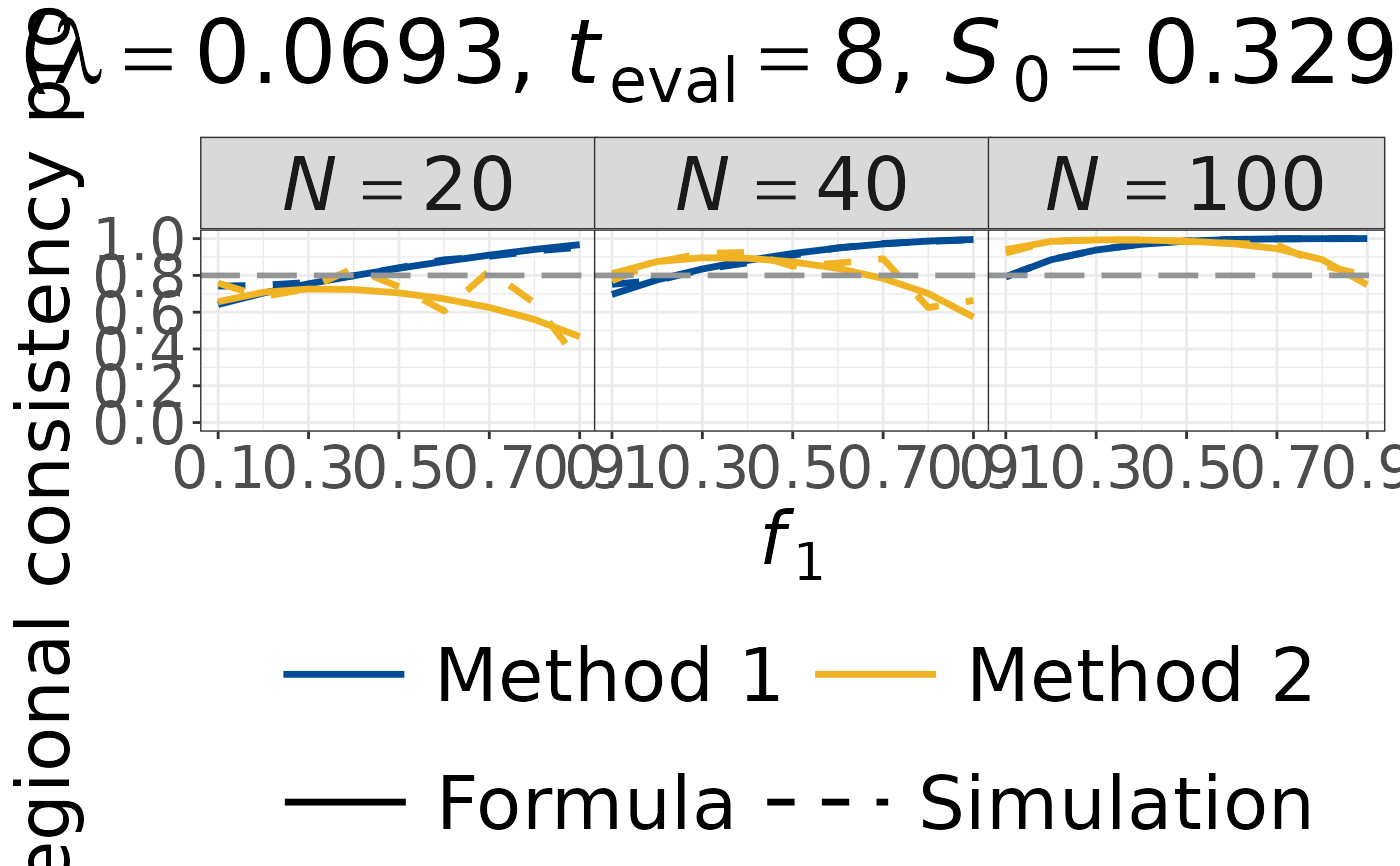

Generate a faceted plot of Regional Consistency Probability (RCP) as a function of the regional allocation proportion \(f_1\) for milestone survival endpoints. Formula and simulation results are shown together for both Method 1 and Method 2. Facet columns correspond to total sample sizes specified in N_vec.

Regional sample sizes are allocated as: \(N_{j1} = \lfloor N \times f_1 \rfloor\) and \(N_{j2} = \cdots = N_{jJ} = (N - N_{j1}) / (J - 1)\).

Usage

plot_rcp1armMilestoneSurvival(
  lambda = log(2)/10,
  t_eval = 8,
  S0 = exp(-log(2) * 8/5),
  t_a = 3,
  t_f = 10,
  lambda_dropout = NULL,
  PI = 0.5,
  N_vec = c(20, 40, 100),
  J = 3,
  f1_seq = seq(0.1, 0.9, by = 0.1),
  nsim = 10000,
  seed = 1,
  base_size = 28
)

Arguments

lambda

Numeric scalar. True hazard rate under the alternative hypothesis. Must be positive. Default is log(2) / 10.

t_eval

Numeric scalar. Milestone evaluation time point. Must be positive. Default is 8.

S0

Numeric scalar. Historical control survival rate at t_eval. Must be in \((0, 1)\). Default is exp(-log(2) * 8 / 5).

t_a

Numeric scalar. Accrual period. Must be positive. Default is 3.

t_f

Numeric scalar. Follow-up period. Must be positive. Default is 10.

lambda_dropout

Numeric scalar or NULL. Dropout hazard rate. If NULL (default), no dropout is assumed.

PI

Numeric scalar. Effect retention threshold for Method 1. Must be in \([0, 1]\). Default is 0.5.

N_vec

Integer vector. Total sample sizes for each facet column. Default is c(20, 40, 100).

J

Positive integer (>= 2). Number of regions. Default is 3.

f1_seq

Numeric vector. Sequence of Region 1 allocation proportions. Each value must be in \((0, 1)\). Default is seq(0.1, 0.9, by = 0.1).

nsim

Positive integer. Number of Monte Carlo iterations for simulation. Default is 10000.

seed

Non-negative integer. Random seed for simulation. Default is 1.

base_size

Positive numeric. Base font size in points passed to theme. Use larger values (e.g., 28) for presentation slides and smaller values (e.g., 11) for vignettes or reports. Default is 28.

Value

A ggplot2 object.

Examples

# \donttest{
p <- plot_rcp1armMilestoneSurvival(
  lambda = log(2) / 10,
  t_eval = 8,
  S0     = exp(-log(2) * 8 / 5),
  t_a    = 3,
  t_f    = 10,
  PI     = 0.5,
  N_vec  = c(20, 40, 100),
  J      = 3
)
print(p)

# }
